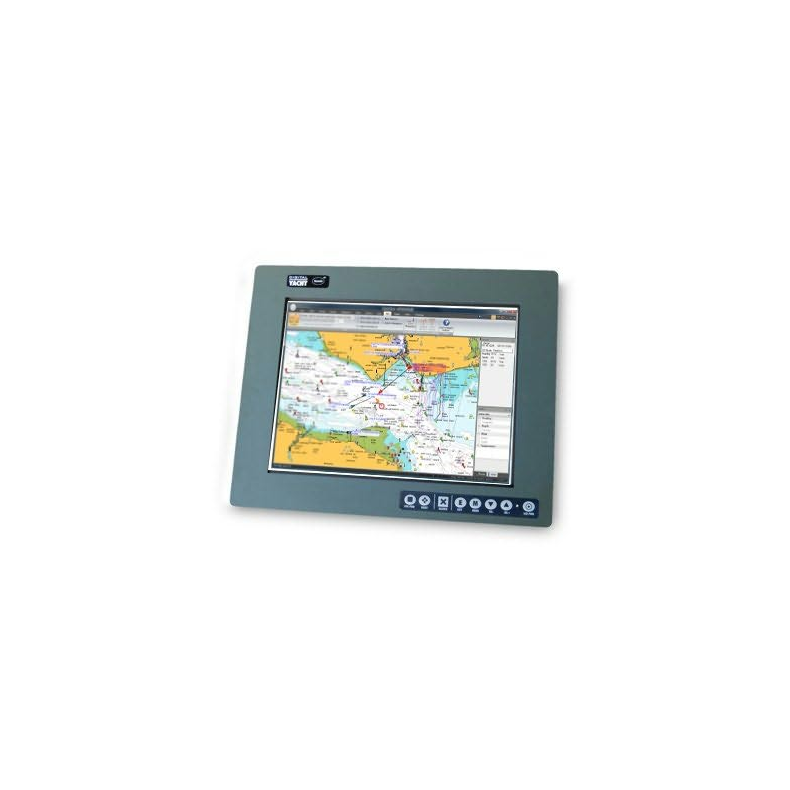

12" high resolution (1024 x 768 pixel) LCD touch screen with VGA, DVI and composite video input.
12V dc direct operation. Supplied with flush mount kit. Touch screen operation requires USB
connection to PC. Supplied with software 12? RESISTIVE TOUCH SCREEN LCD MONITOR
Slim, light and reliable.
1024 x 768 pixel resolution, ideal for displaying complex graphics and high definition images.
High brightness and ultra-wide viewing angle with anti-glare features.
All kinds of touch input devices can activate the screen, including fingers, fingernails, styluses, gloved hands, and credit cards.
Plug and play compatibility
Advanced OSD (On Screen Display) controls for picture quality adjustment
Extra On-Screen buttons to enable easy power control of the CPU, CPU restart and audio silencing.
Offers all standard video interfaces for input sources from PC or multimedia system: VGA-in, DVI, S-video
Tested and complies with FCC limits for a Class A digital device.
Panel mounting, wall mounting and desktop stand options
SPECIFICATIONS
Dimensions - 340 x 260 x 46.5mm
Construction - Heavy-duty stainless steel chassis
Net weight - 3.5 kgs
Power - 12v DC
Brightness - 400 nits
Control - OSD (On Screen Display) control pad on front side
Operating Temp. Range = -10°C ~ 55°C
Relative Humidity - 20% ~ 90% non-condensing
Approvals
Tested and complies with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules.
8. CPU PWR
7. CPU Reset
6. Silence
5. Exit
4. Menu (turns on/off the On Screen Display main menu or press to activate selected items)
3. SEL -
2. SEL + (to scroll up the menu or increase the value of a selected item)
1. LCD Power button + Power LED
7. Power.
6. Processor Control
5. DVI port
4. VGA
3. Video
2. S-Video
1. T/S
